| 코팅: | Tialsin | 재료: | 0.6um 미세한 텅스텐 카바이드 |
|---|---|---|---|
| 모양: | 평평한 | HRC: | 55hrc |
| 나선 각도: | / | 플루트: | 2 |
| 칩 플루트: | 2 | 각도: | 90 ° |
| 직경 절단: | 0.1-0.9 | 플루트 길이: | 0.2-1.8 |
| 생크 직경: | 4 | 전체 길이: | 50 |
| 그루브 각도: | 55 ° | 적합한 재료: | 구리, 합금강, 일반 철강 부품, 주철 |
| 기계 호환성: | CNC-생산-센터,조각-기계,CNC-밀링-기계 | ||
| 강조하다: | 55-Degree Straight Groove Tungsten Carbide End Mill,nACo4 Coating Tungsten Carbide End Mill,0.6um fine-grained tungsten carbide End Mill |
||
| Parameter | Value |
|---|---|
| Flutes | 2 |
| Chip Flute | 2 |
| Coating | TiALSiN |
| Shape | Drill |
| Angle | 90° |
| HRC | 65° |

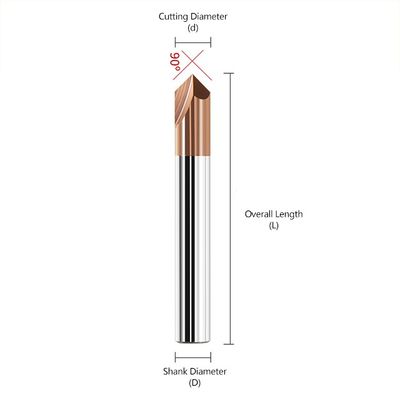

| Number of Flutes | Cutting Diameter (d) | Flute Length (l) | Shank Diameter (D) | Overall Length (L) |
|---|---|---|---|---|
| Double blade | 0.1 | 0.2 | 4 | 50 |
| Double blade | 0.2 | 0.4 | 4 | 50 |
| Double blade | 0.3 | 0.6 | 4 | 50 |
| Double blade | 0.4 | 0.8 | 4 | 50 |
| Double blade | 0.5 | 1 | 4 | 50 |
| Double blade | 0.6 | 1.2 | 4 | 50 |
| Double blade | 0.7 | 1.4 | 4 | 50 |
| Double blade | 0.8 | 1.6 | 4 | 50 |
| Double blade | 0.9 | 1.8 | 4 | 50 |
A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.
A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
