| 재료: | 텅스텐 카바이드 | 곡물 크기: | 0.6um 미세한 입자 |
|---|---|---|---|
| 플루트 수: | 4 | 모양: | 평평한 |
| 코팅: | 나코4 | 경도: | 65HRC |
| 나선 각도: | 35 ° | 직경 절단: | 1-20mm |
| 플루트 길이: | 3-75mm | 생크 직경: | 3-20mm |
| 전체 길이: | 50-150mm | 적합한 재료: | 치즐 공구강, 경화강, 탄소강, 합금강 |
| 색상: | 스라이브리 | 칩 플루트: | 4 |
| 각도: | 35 ° | ||
| 강조하다: | nACo4 Coating Tungsten Carbide End Mill,35° Helix Angle Carbide End Mill,3 Years Warranty CNC End Mill |
||
| Parameter | Value |
|---|---|
| Flutes | 4 |
| Chip Flute | 4 |
| Coating | nACo4 |
| Shape | Flat |
| Angle | 35° |
| HRC | 65° |

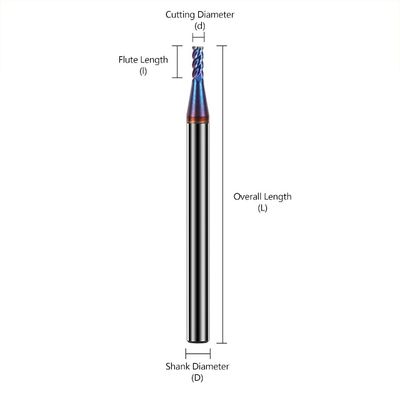

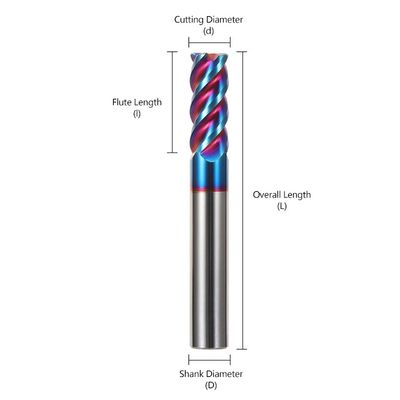

| Number of Flutes | Cutting Diameter (d) | Flute Length (l) | Shank Diameter (D) | Overall Length (L) |
|---|---|---|---|---|
| Double blade | 1 | 3 | 4 | 50 |
| 1.5 | 4.5 | 4 | 50 | |
| 2 | 6 | 4 | 50 | |
| 2.5 | 7.5 | 4 | 50 | |
| 3 | 8 | 3 | 50 | |
| 3 | 8 | 4 | 50 | |
| 10 | 40 | 10 | 100 |
A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.
A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
