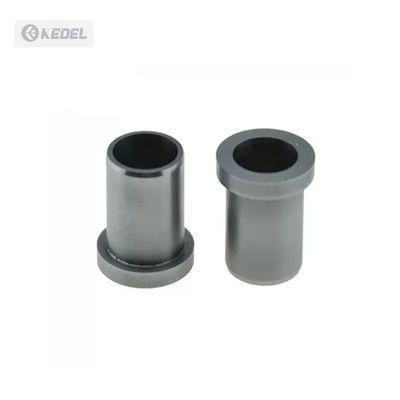

High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment

High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment
High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment

큰 이미지 :  High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment

제품 상세 정보:
원래 장소: 중국
결제 및 배송 조건:
최소 주문 수량: 5
가격: $7.50-21.50
접촉

High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment

설명
재료: 100% 순수 텅스텐 카바이드 분말 모양: 원통형
표면: 광택 색상: 검은색
등급: yg8/yg9c/yg11c 밀도: 14.90 g/cm³
경도: 93.0 HRA Trs: 2700 MPa
다공성: A02/B00/C00 곡물 크기: 0.6-0.8 μm
외경: 16.41 mm 내 직경: 14.05 mm
기공 직경: 12.70 mm 길이: 25.40 mm
스텝 길이: 1.00 mm
강조하다:

100% Pure Tungsten Carbide Powder Tungsten Carbide Sleeve

,

YG8/YG9C/YG11C Grade Tungsten Carbide Sleeve

,

Cylindrical Shape Tungsten Carbide Sleeve

Hot Sales Cemented Tungsten Carbide Alloy Cylindrical Seal Sleeve Bushing

Premium quality cylindrical seal sleeve bushings designed specifically for the petroleum, natural gas, and chemical industries.

Product Description
High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 0 High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 1
Product Parameters
High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 2 High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 3
Material Composition & Properties
Grade Composition (% in weight) Physical Properties Grain size (μm)

WC Ni Ti TaC Density g/cm³ (±0.1) Hardness HRA (±0.5) TRS Mpa (min) Porosity A/B/C
KD115/YG6X 93.5 6.0 - 0.5 14.90 93.0 2700 A02/B00/C00 0.6-0.8
KD335/YG10X 89.0 10.5 - 0.5 14.40 91.8 3800 A02/B00/C00 0.6-0.8
KG6/YG6 94.0 6.0 - - 14.90 90.5 2500 A02/B00/C00 1.2-1.6
KG8/YG8 92.0 8.0 - - 14.75 90.0 3200 A02/B00/C00 1.2-1.6
KG9/YG9 91.0 9.0 - - 14.60 89.0 3200 A02/B00/C00 1.2-1.6
KG9C/YG9C 91.0 9.0 - - 14.60 88.0 3200 A02/B00/C00 1.6-2.4
KG10/KG10 90.0 10.0 - - 14.50 88.5 3200 A02/B00/C00 1.2-1.6
KG11/YG11 89.0 11.0 - - 14.35 89.0 3200 A02/B00/C00 1.2-1.6
KG11C/YG11C 89.0 11.0 - - 14.40 87.5 3000 A02/B00/C00 1.6-2.4
KG13/YG13 87.0 13.0 - - 14.20 88.7 3500 A02/B00/C00 1.2-1.6
KG13C/YG13C 87.0 13.0 - - 14.10 87.0 3500 A02/B00/C00 1.6-2.4
KG15/YG15 85.0 15.0 - - 14.00 87.5 3500 A02/B00/C00 1.2-1.6
KG15C/YG15C 85.0 15.0 - - 14.50 86.5 3500 A02/B00/C00 1.6-2.4
KD118/YG8X 91.5 8.5 - - 14.10 93.6 3800 A02/B00/C00 0.4-0.6
KD338/YG12X 88.0 12.0 - - 12.60 92.8 2200 A02/B00/C00 0.4-0.6
KD25/P25 77.4 8.5 6.5 6.0 12.70 91.8 2200 A02/B00/C00 1.0-1.6
KD35/P35 69.2 10.5 5.2 13.8 13.25 91.1 2500 A02/B00/C00 1.0-1.6
KD10/M10 83.4 7.0 4.5 4.0 12.33 93.0 2000 A02/B00/C00 0.8-1.2
KD20/M20 79.0 8.0 7.4 3.8 12.33 92.1 2200 A02/B00/C00 0.8-1.2
NOTE: Customization available per customer drawing or actual sample
Standard Specifications
Specification OD (D:mm) ID (D1:mm) Pore (d:mm) Length (L;mm) Step length (L1:mm)
01 16.41 14.05 12.70 25.40 1.00
02 16.41 14.05 12.70 31.75 1.00
03 22.04 18.86 15.75 31.75 3.18
04 22.04 18.86 15.75 50.80 3.18
05 16.00 13.90 10.31 76.20 3.18
06 22.00 18.88 14.30 25.40 3.18
07 24.00 21.00 16.00 75.00 3.00
08 22.90 21.00 15.00 75.00 3.00
09 19.50 16.90 12.70 50.00 4.00
10 36.80 32.80 26.00 55.00 4.00

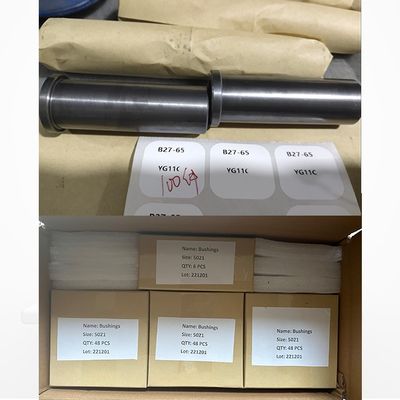

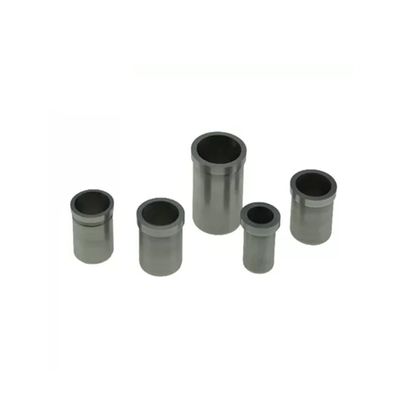

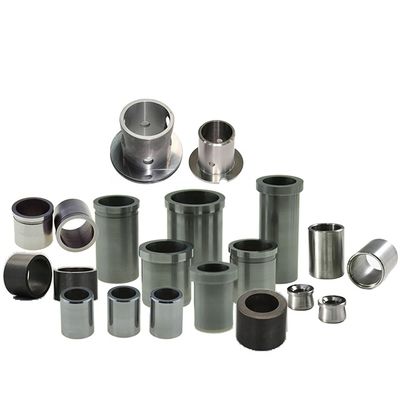

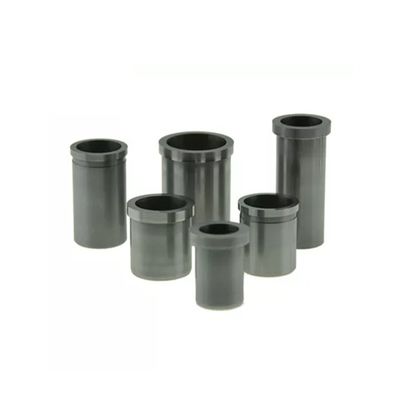

Detailed Images
High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 4
Why Choose Us
High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 5
Company Profile
High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 6
Exhibition
High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 7 High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 8High Wear Resistance Tungsten Carbide Sleeve with 100% Pure Tungsten Carbide Powder and YG8/YG9C/YG11C Grade for Petrochemical Equipment 9

In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward.


Frequently Asked Questions
How to obtain an accurate quotation from Kedel Tools?
Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models. This will allow us to provide you with a more accurate quote.
How does our company ensure the quality of its products?
We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
How long does a typical production cycle take?
For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
What is our company's payment method?
We accept wire transfers, L/C, ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
